產品概覽
本產品為 Beat-Sonic Toon X 純正音質升級套件，專為 Honda Civic（第 11 代）及 Civic Type R 原廠 Honda CONNECT 顯示系統（8 喇叭版本） 所設計。
在不更換原廠主機、不更換喇叭的前提下，即可大幅提升原廠音響的音質表現。
Toon X 以「讓駕駛時光成為至高的專屬自我時間」為開發理念，只需安裝此套件，即可讓原本平面的原廠聲音，瞬間變得立體、寬廣且充滿臨場感。坐上駕駛座，彷彿置身於現場音樂會的最佳座位，為每一次駕駛帶來震撼且沉浸的音樂體驗。
本產品由 Beat-Sonic 音響職人 針對實際車型進行細緻調校，所有設定皆已預先完成。安裝後無需任何額外設定，即可直接享受高品質音樂表現。
採用 原廠接頭直插（Coupler-on）設計，無需剪線或改線，保留原車完整性，並可輕鬆回復至原廠狀態。

適用車型
Honda Civic（R03/09～R06/09）
Honda CONNECT 顯示系統（8 喇叭）
Honda Civic Type R（R04/09～R06/09）
Honda CONNECT 顯示系統（8 喇叭）

技術規格
電源供應：DC12V（負極接地）
工作電壓範圍：10V～15V
最大消耗電流：15A
消耗電流（無訊號）：0.35A
保險絲：250V / 15A / φ5.2 × 30mm
（隨車輛連接線附屬）
外接擴大機遙控輸出：12V
遙控輸出電流：0.1A
頻率響應（+0 / -1dB）：20Hz～22kHz
訊噪比（S/N Ratio）：105dB
總諧波失真（THD）：0.01%

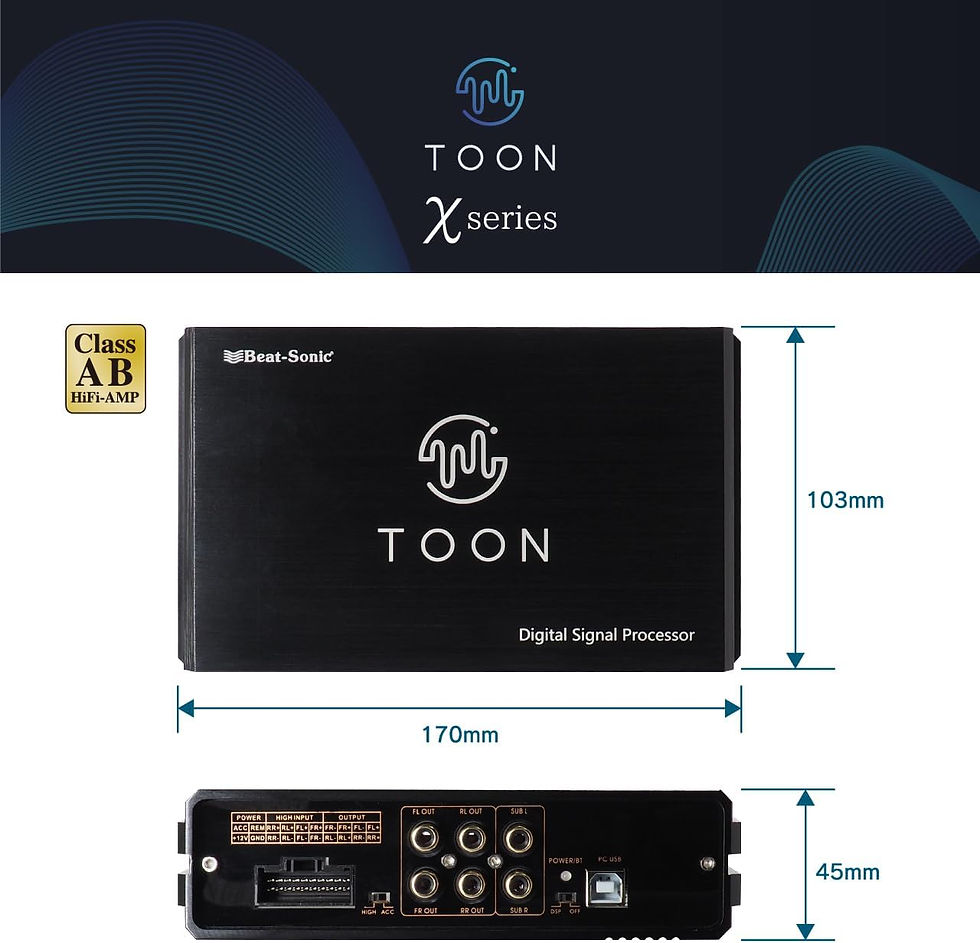

機身尺寸（寬 × 深 × 高）：170 × 103 × 45 mm
重量：900g

* 日本制造

Product Overview
The Beat-Sonic Toon X OEM Sound Upgrade Kit is designed specifically for the Honda Civic (11th Generation) and Civic Type R, equipped with the factory Honda CONNECT display system with 8 speakers.
Without replacing the factory head unit or speakers, Toon X dramatically enhances the sound quality of the original audio system. Developed under the concept of “turning every drive into your ultimate personal time,” this system transforms flat factory sound into a rich, three-dimensional, and immersive listening experience.
Once installed, the driver’s seat feels like the front row of a live concert, delivering powerful realism and depth that completely redefines the factory audio experience.
Each vehicle-specific Toon X system is meticulously tuned by Beat-Sonic’s professional audio craftsmen using an actual vehicle. All settings are pre-configured, allowing you to enjoy premium sound immediately after installation—no adjustments required.
Thanks to its plug-and-play coupler-on design, installation requires no wire cutting or modification, and the vehicle can easily be returned to its original condition.

Compatible Vehicles
Honda Civic (Sep 2021 – Sep 2024)
Honda CONNECT Display (8-speaker system)
Honda Civic Type R (Sep 2022 – Sep 2024)
Honda CONNECT Display (8-speaker system)

Technical Specifications
Power Supply: DC12V (Negative Ground)
Operating Voltage: 10V–15V
Max Current Consumption: 15A
Current Consumption (No Signal): 0.35A
Fuse: 250V / 15A / φ5.2 × 30mm
(Included with vehicle harness)
Remote Output for External Amplifier: 12V
Remote Output Current: 0.1A
Frequency Response (+0 / -1dB): 20Hz–22kHz
Signal-to-Noise Ratio (S/N): 105dB
Total Harmonic Distortion (THD): 0.01%
Dimensions (W × D × H): 170 × 103 × 45 mm
Weight: 900g

* Made in Japan
